旋轉接頭的支撐止轉方式:

Anri-Rotation:

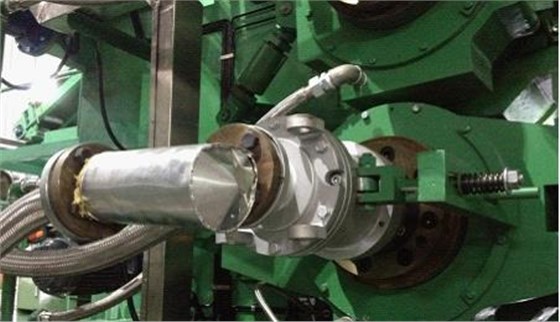

1.利用旋轉接頭殼體上已有的螺紋孔和止轉孔起止轉作用(螺紋孔的止轉桿不宜太長，過長容易斷裂。如下圖一所示)

1.Use the existing thread/anti-rotation hole. The anti-rotation rod should not be too long (Picture 1).

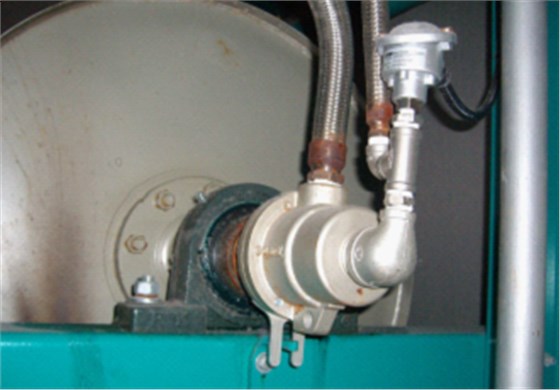

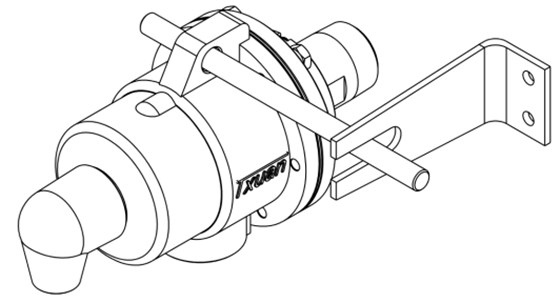

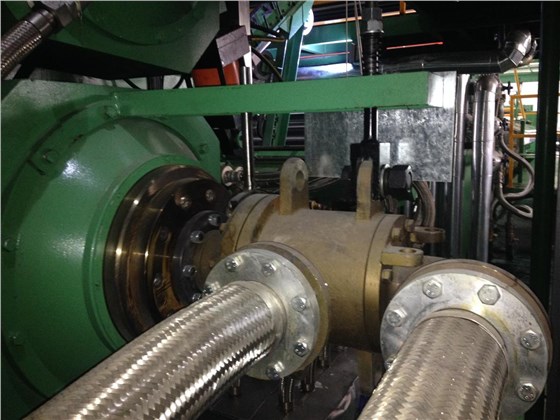

2.利用撥叉來止轉，將止轉桿一頭連接到客戶設備上，一頭伸到撥叉U型槽內（如下圖二、六、七所示）。

2.Use the shifting yoke, by faxing one end to the equipment, and another end inserted into the U groove (Picture 2, 6, and 7).

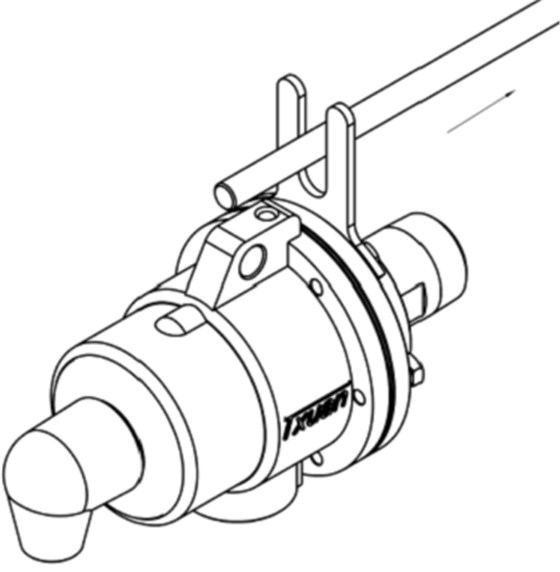

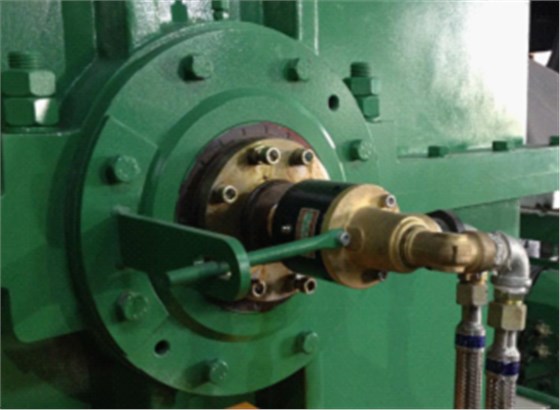

3. 通徑(100-250）的旋轉接頭安裝止轉要考慮到旋轉接頭自身的承重（如下圖四、五所示帶有彈簧的吊緊裝置）

3. For rotary joint size 100-250, the self bearing capacity thereof should be taken into consideration in designing the anti-rotation (Picture 4 and 5: Fastening structure with spring).
